Mini COD 3D

📌 Overview

Mini COD 3D is an entry-level storage server platform built on the Dell OptiPlex 7050 tower. It is designed as a compact and practical base for home, SOHO, and LAB storage use.

This system is provided fully assembled, tested, and prepared with XigmaNAS installed on a dedicated NVMe system SSD. XigmaNAS is a third-party open-source NAS operating system based on FreeBSD.

This is not a fully populated NAS appliance: data drives are not included and are to be installed by the buyer based on their own capacity and storage layout requirements.

The platform uses only the standard onboard resources of the Dell motherboard: no HBA, no add-in NIC, and no other expansion cards. This keeps the build simple, quiet, power-efficient, and easy to understand.

⭐ Key Features

• Seller refurbished system, prepared for storage-server use
• Compact Dell OptiPlex 7050 tower platform
• Supports up to 3 user-supplied SATA data drives
• Uses only onboard motherboard SATA connectivity
• No HBA, no RAID card, no extra NIC, no PCIe storage expansion
• Includes connected DVD drive
• Fully assembled and tested platform
• Clean, low-complexity storage server design
• XigmaNAS installed on dedicated NVMe system SSD
• This platform was also tested for TrueNAS installation

🔒 Included / What’s NOT Included

This system is provided as a prepared storage server platform.

Included

• ✅ Fully assembled Dell OptiPlex 7050 tower platform
• ✅ XigmaNAS installed on NVMe system SSD
• ✅ SATA cabling installed
• ✅ DVD drive installed and connected
• ✅ Mounting hardware for 3.5" drive installed
• ✅ Mounting hardware for 2.5" drives installed
• ✅ BIOS configured
• ✅ System tested and verified for platform readiness

Not Included

• ❌ Data drives
• ❌ Preconfigured storage pool for buyer data
• ❌ Customer-specific dataset, share, or permission setup
• ❌ Integration into customer network or infrastructure
• ❌ Ongoing administration or managed services
• ❌ Data migration or backup design services

🎯 Intended Use

Entry-level storage server platform for buyers who want a prepared XigmaNAS base but prefer to select and install their own data drives.

Suitable for home storage, personal file server use, light backup targets, media storage, and small LAB environments.

🧩 Software Version

XigmaNAS installed

🔧 BIOS / Firmware State

• BIOS configured for storage platform use
• System prepared and verified for normal boot and operation

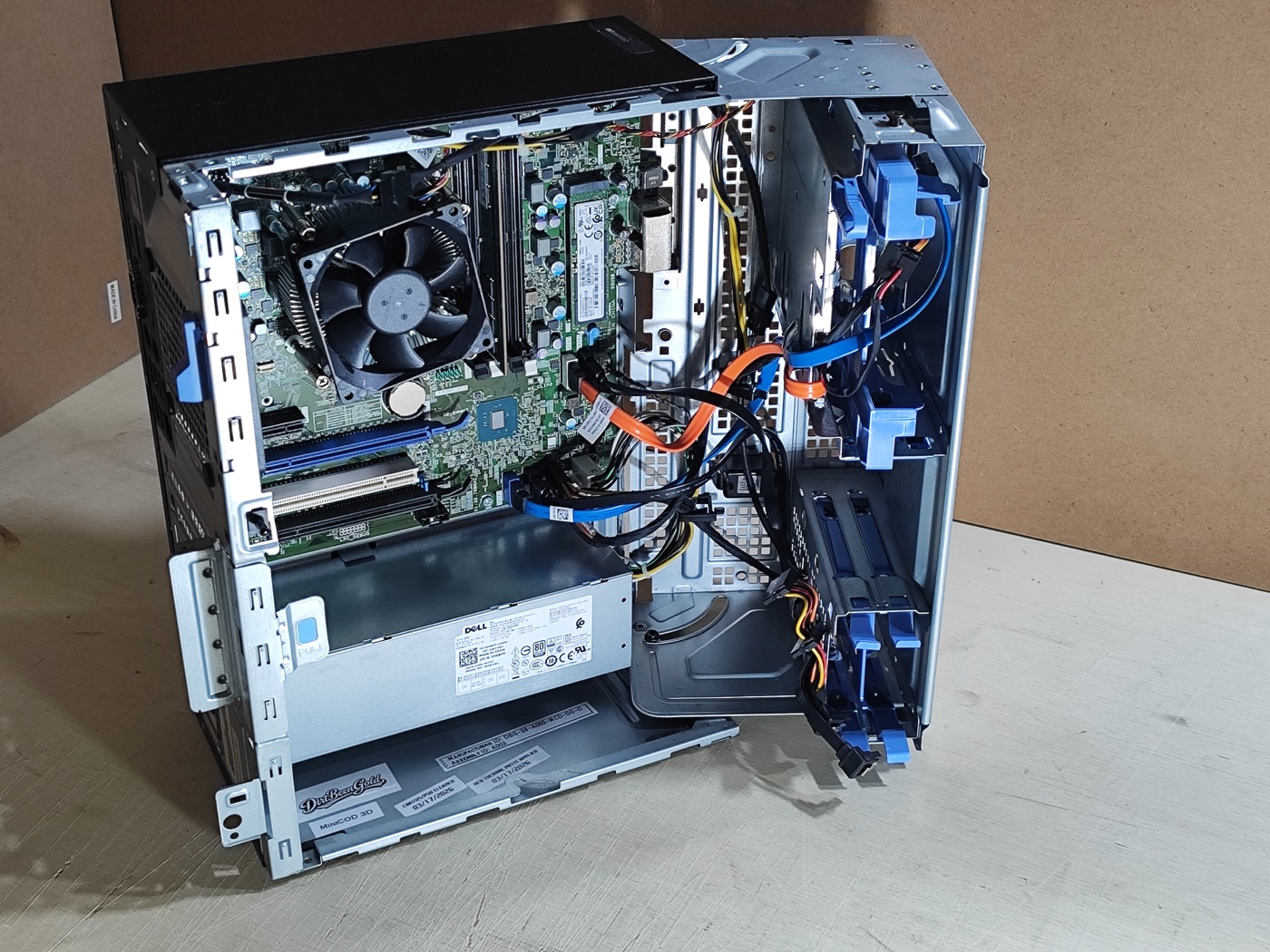

🗄️ Storage Architecture

This platform uses the standard onboard SATA ports of the Dell OptiPlex 7050 motherboard.

Planned SATA usage:

• 1 x SATA port for DVD drive
• 1 x SATA port for one 3.5" data drive
• 2 x SATA ports for two 2.5" data drives

Total:

• 4 motherboard SATA ports utilized
• 3 supported buyer-installed data drives
• 1 connected optical drive

The operating system is installed on a dedicated NVMe SSD and does not consume a SATA port.

🌐 Network Configuration

Standard onboard Ethernet only. No additional network card is installed.

This keeps the platform simple and cost-efficient for entry-level storage use.

✅ Condition

Seller refurbished system built from tested components. Prepared specifically as a compact storage-server platform.

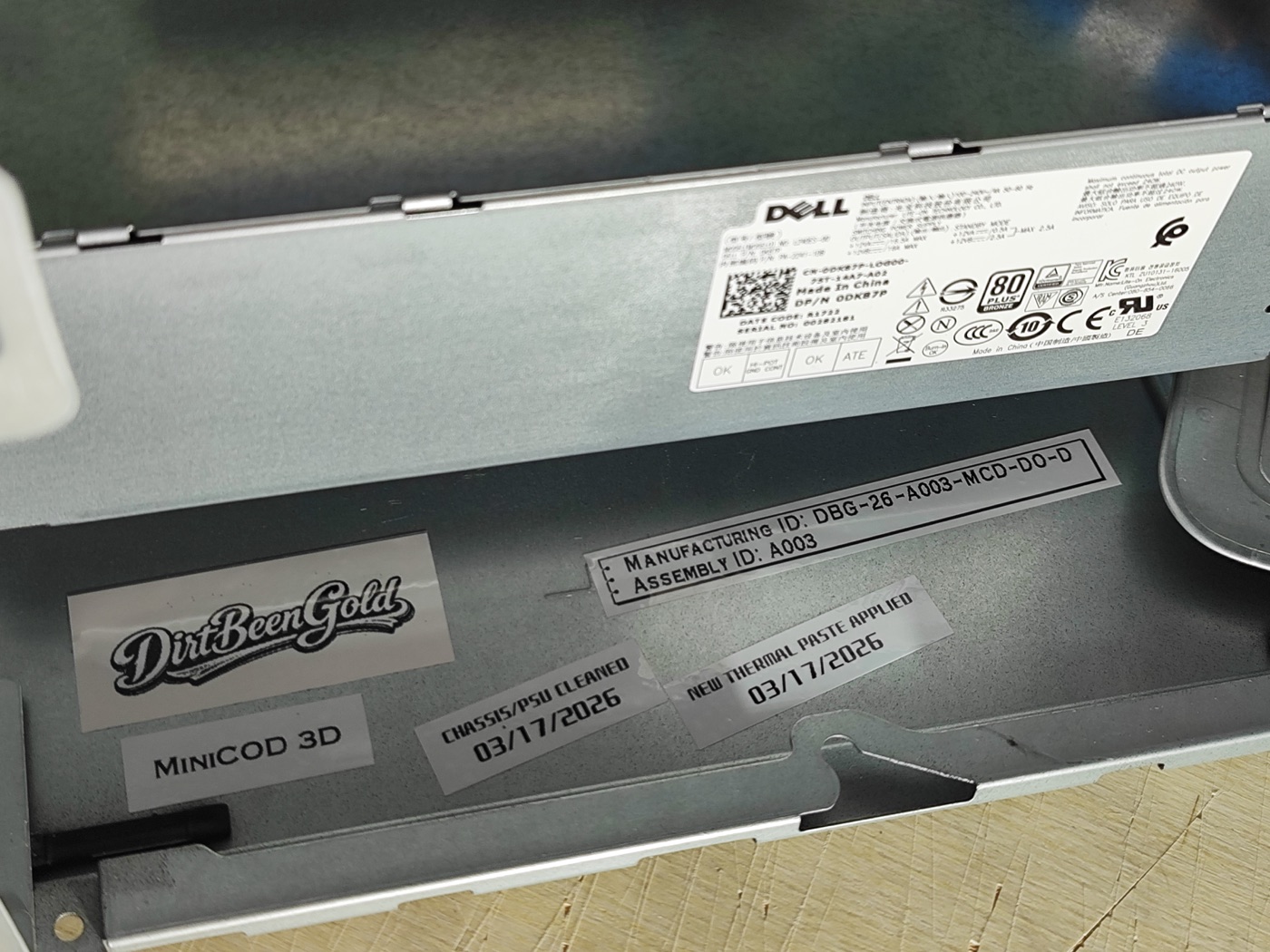

Fully assembled, cleaned, configured, and tested prior to listing. Fresh thermal paste applied to the CPU as part of refurbishment.

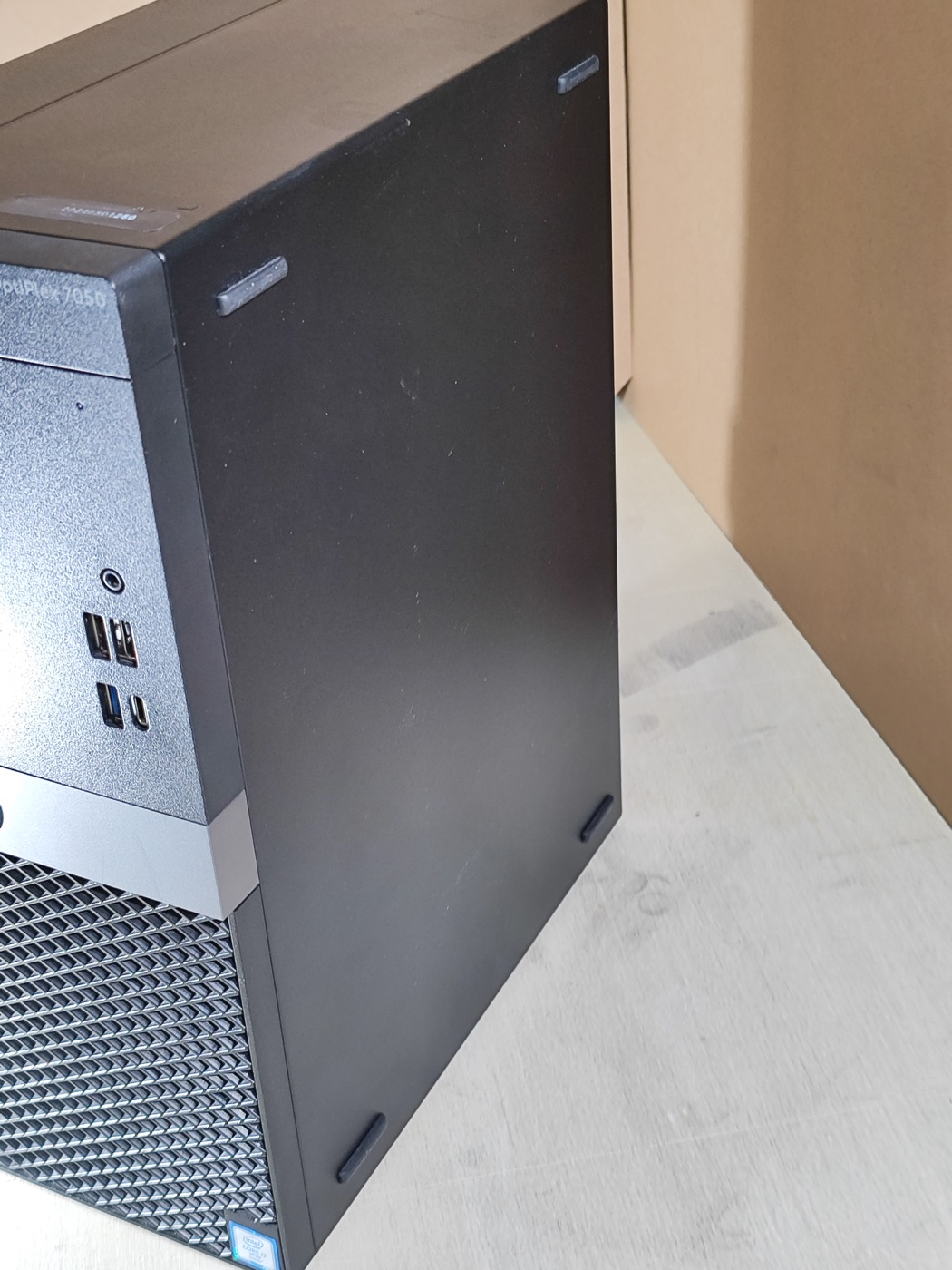

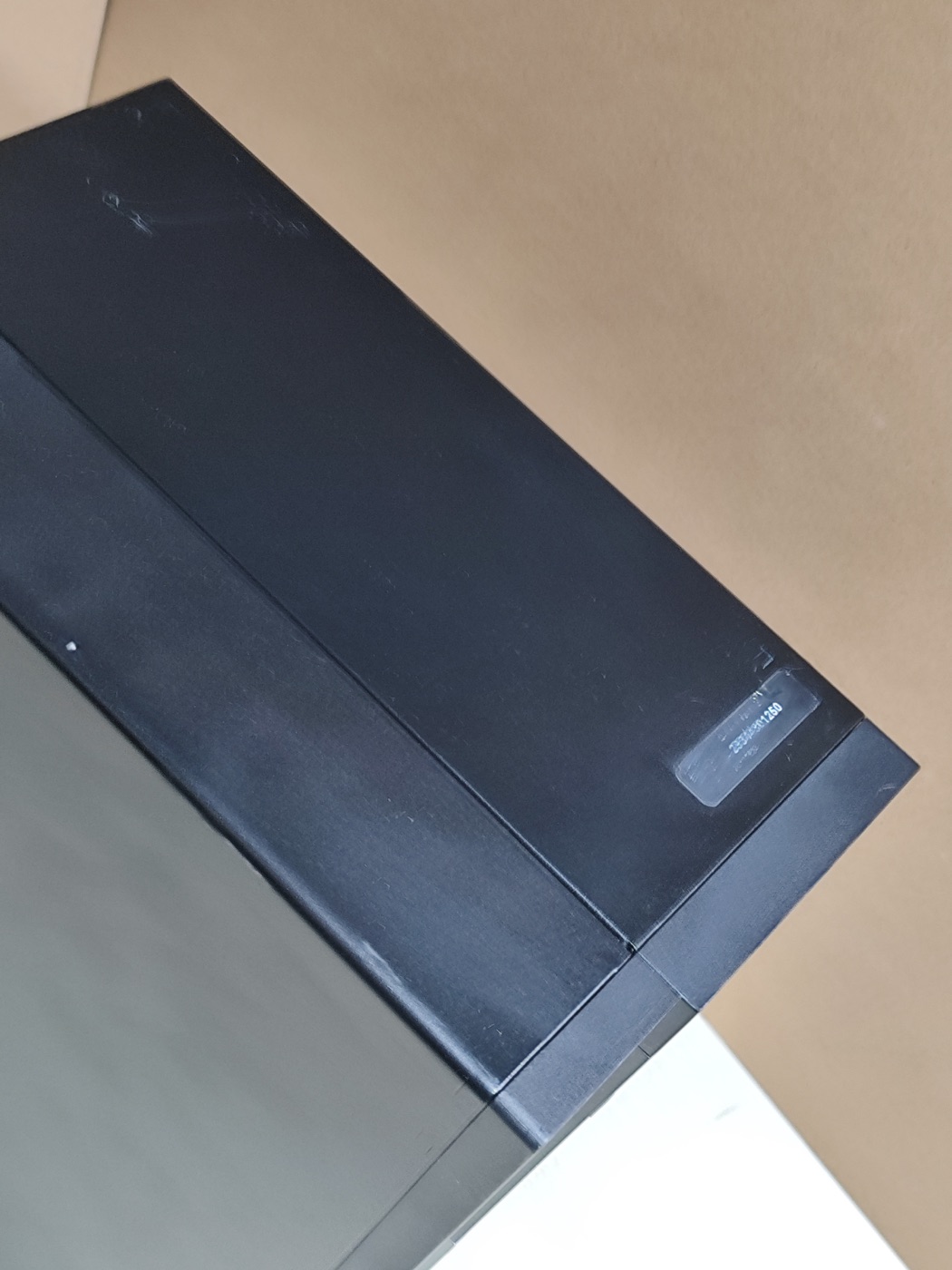

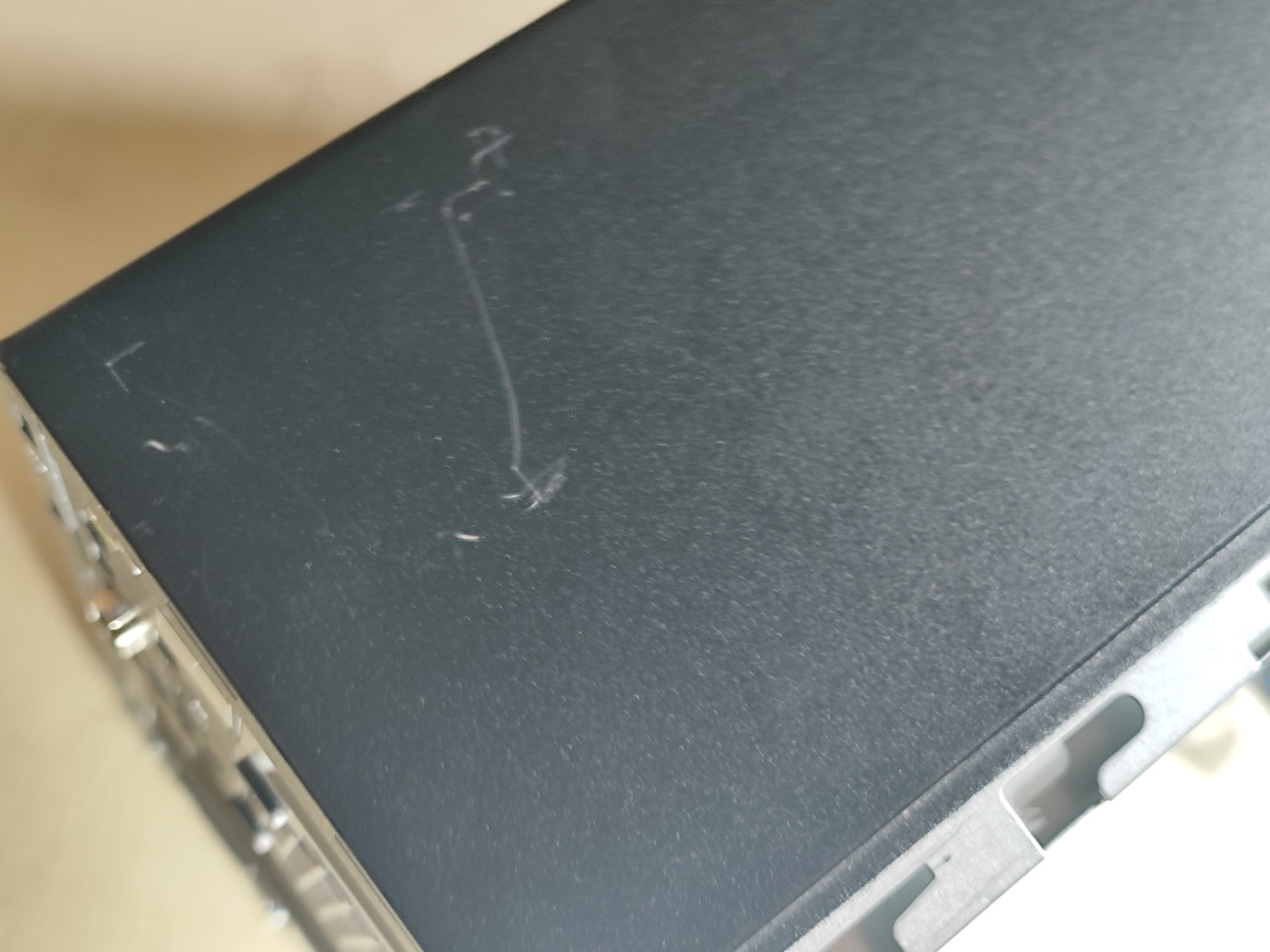

Case may show minor cosmetic wear, including light scratches from previous use. Please review photos carefully.

📋 Component Condition Disclosure

Used components

• Base System: Dell OptiPlex 7050 Tower
• Processor: Intel Core i7-6700
• Memory: 8GB RAM
• DVD Drive: Installed

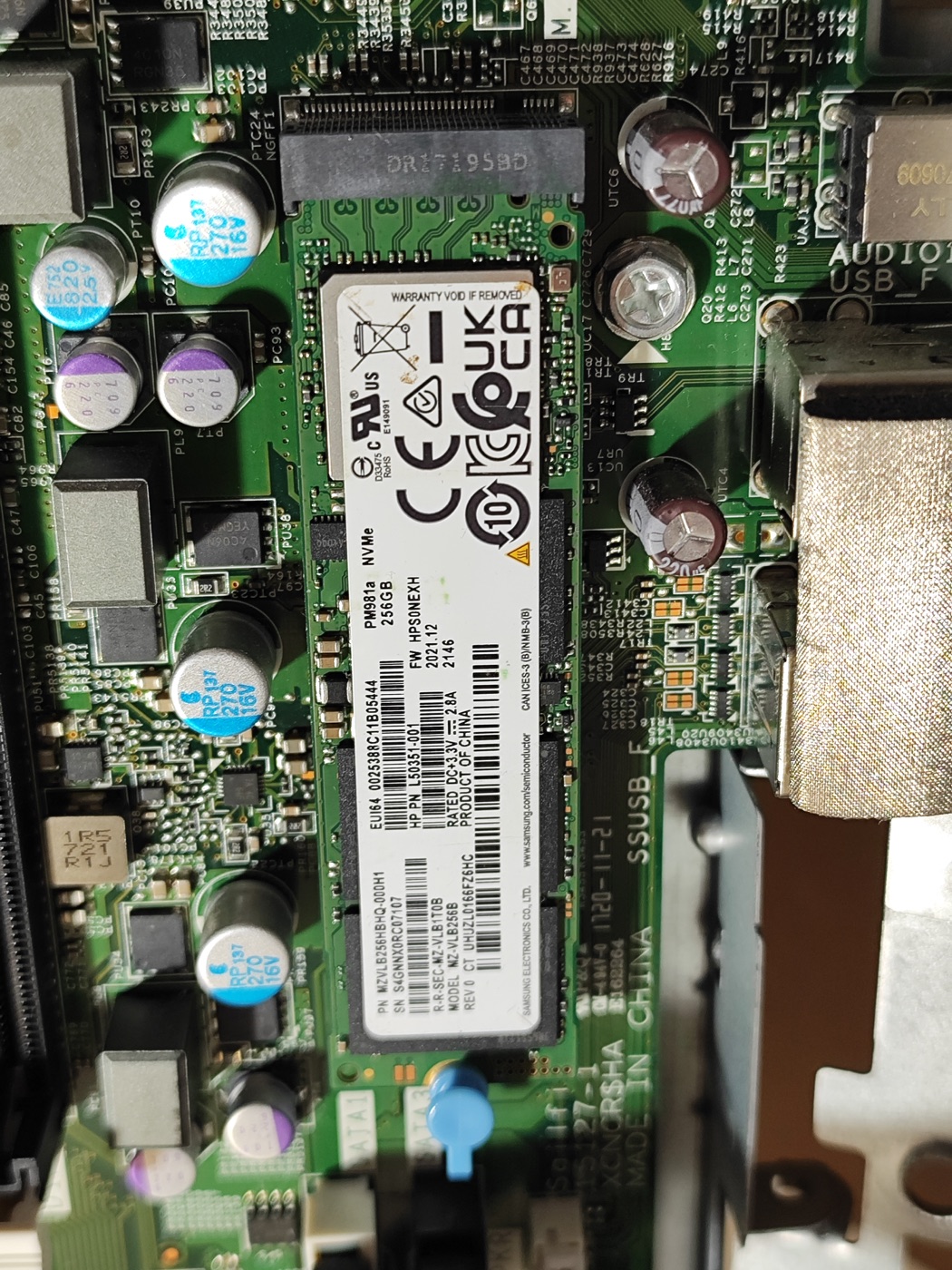

• System SSD: Samsung PM981a 256GB NVMe SSD

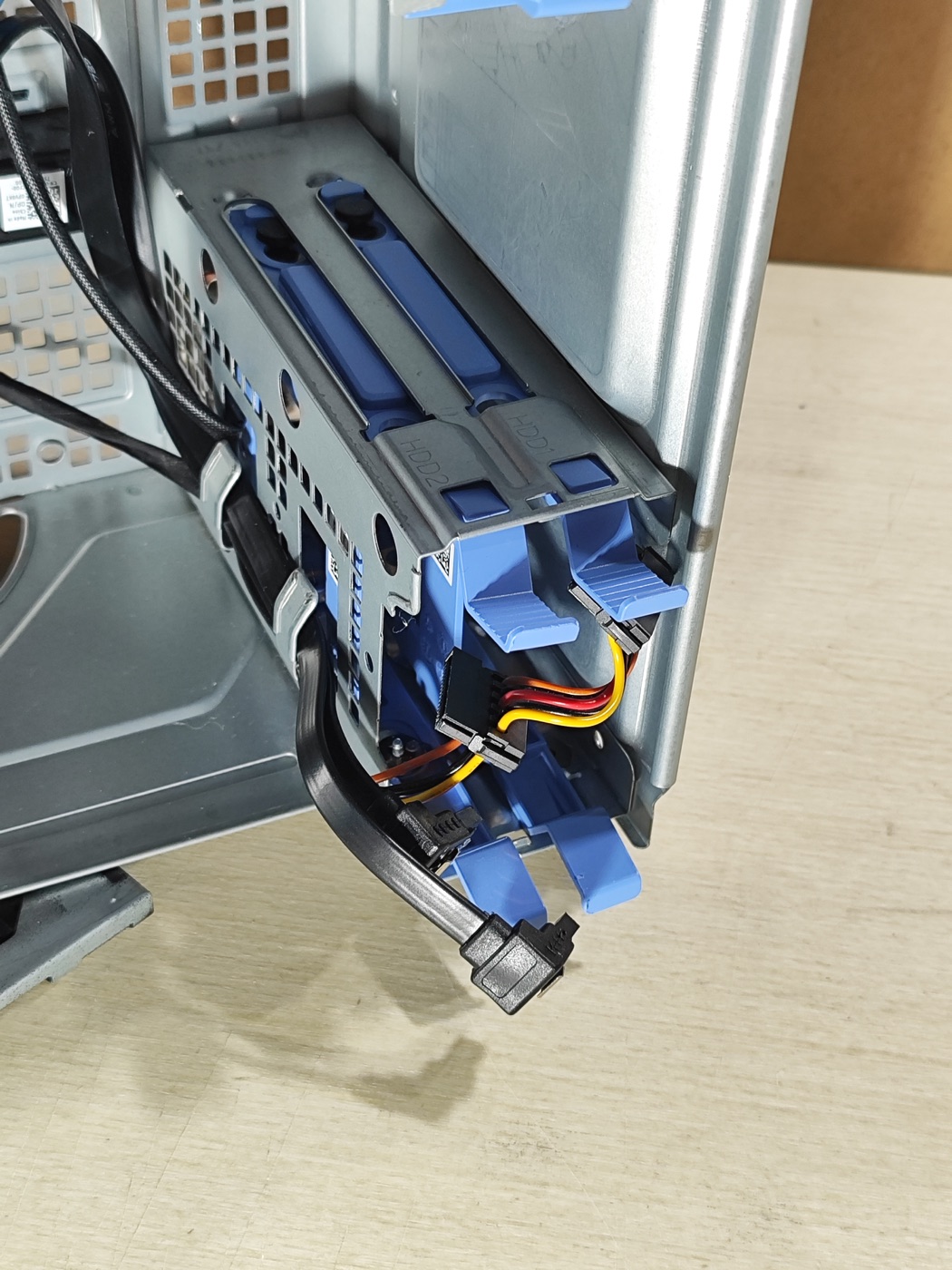

• 3.5" Drive Caddy: Installed

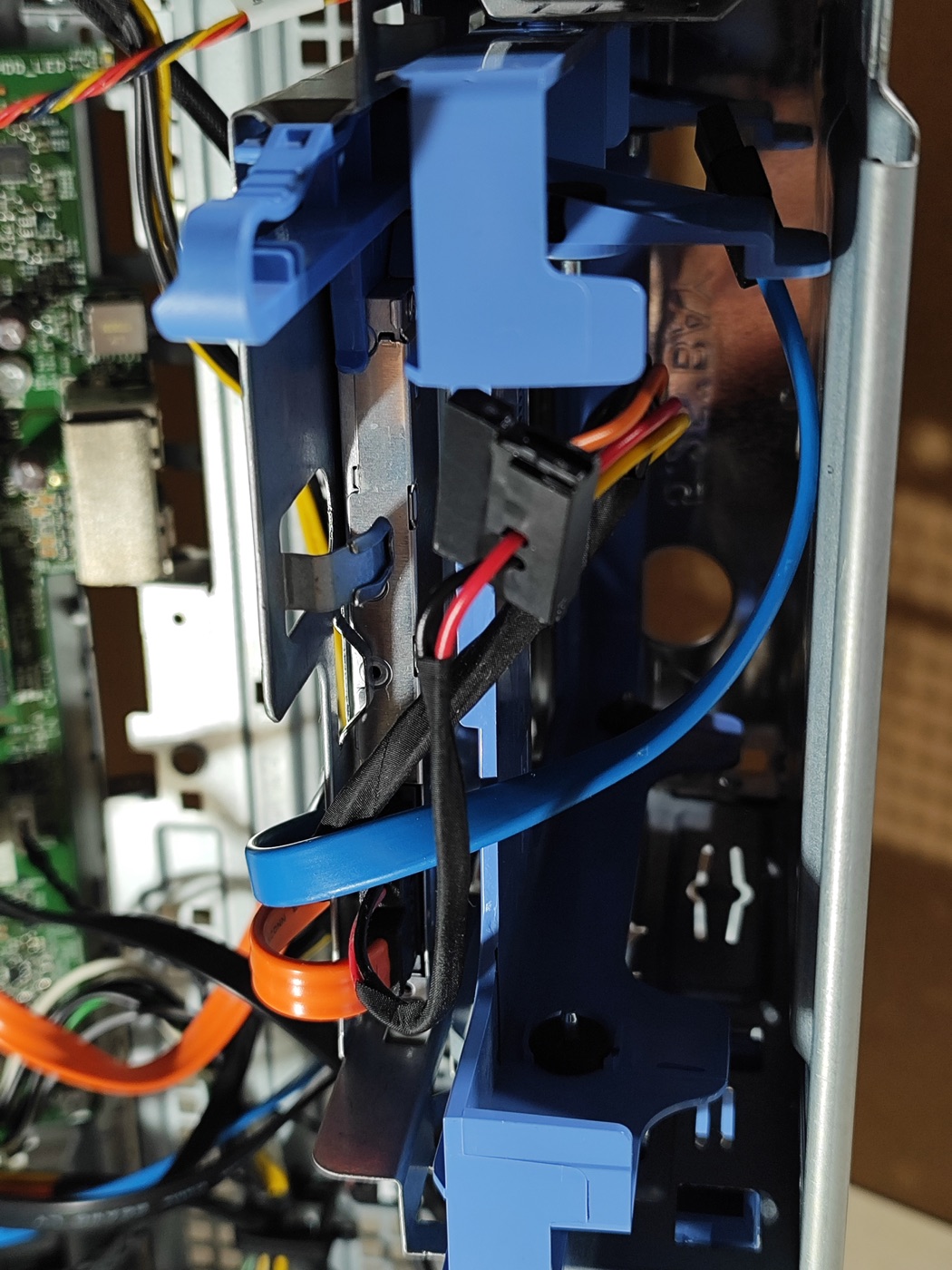

• 2.5" Drive Caddies: Installed

New / replacement / added components

• SATA Cables: Installed as needed for storage configuration

🧪 Testing & Verification

System tested and verified prior to listing.

Testing includes:

• Successful POST and hardware initialization
• BIOS review and configuration
• Successful OS boot from NVMe SSD
• SATA connectivity verification
• DVD detection verification
• General stability check
• Basic storage platform readiness verification

📦 Package Contents

Included:

• Mini COD 3D platform, assembled and configured - 1

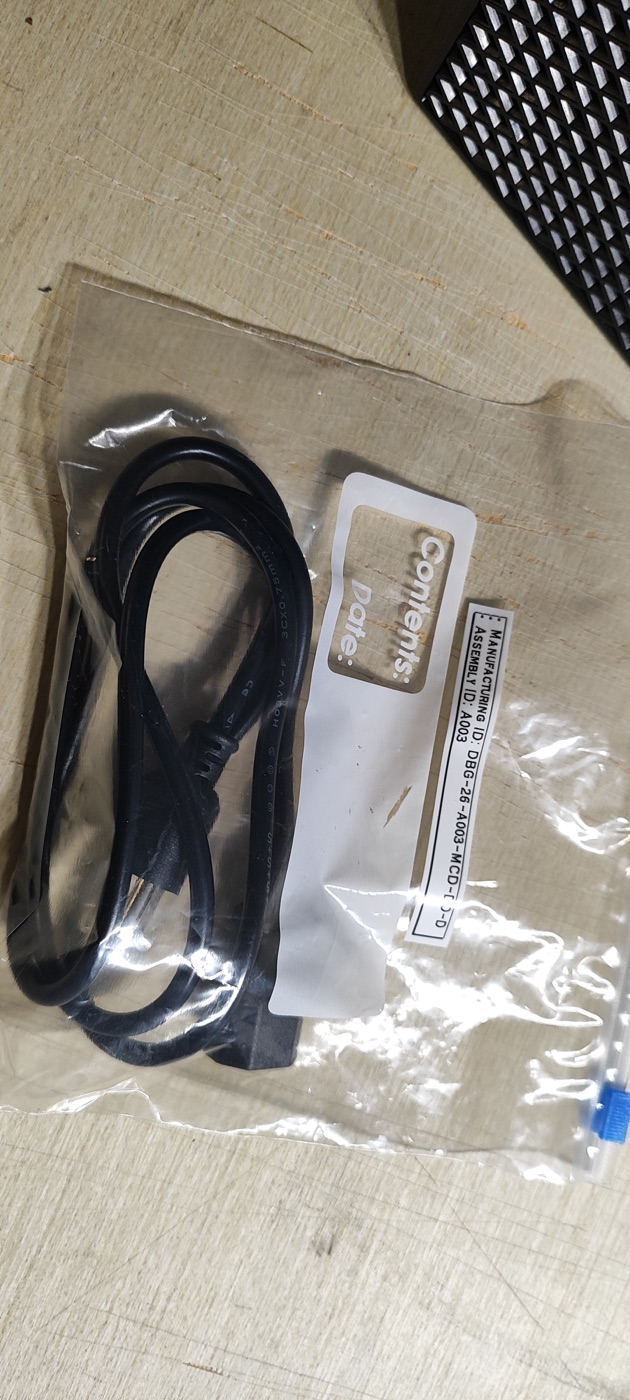

• Power cord - 1

⚠️ Storage & Configuration Responsibility Disclaimer

Data drives are not included. Final storage layout, pool design, redundancy strategy, and data protection are the responsibility of the buyer. The seller is not responsible for data loss or configuration issues resulting from buyer-installed drives or buyer-defined storage configuration.

🧱 Hardware Specifications

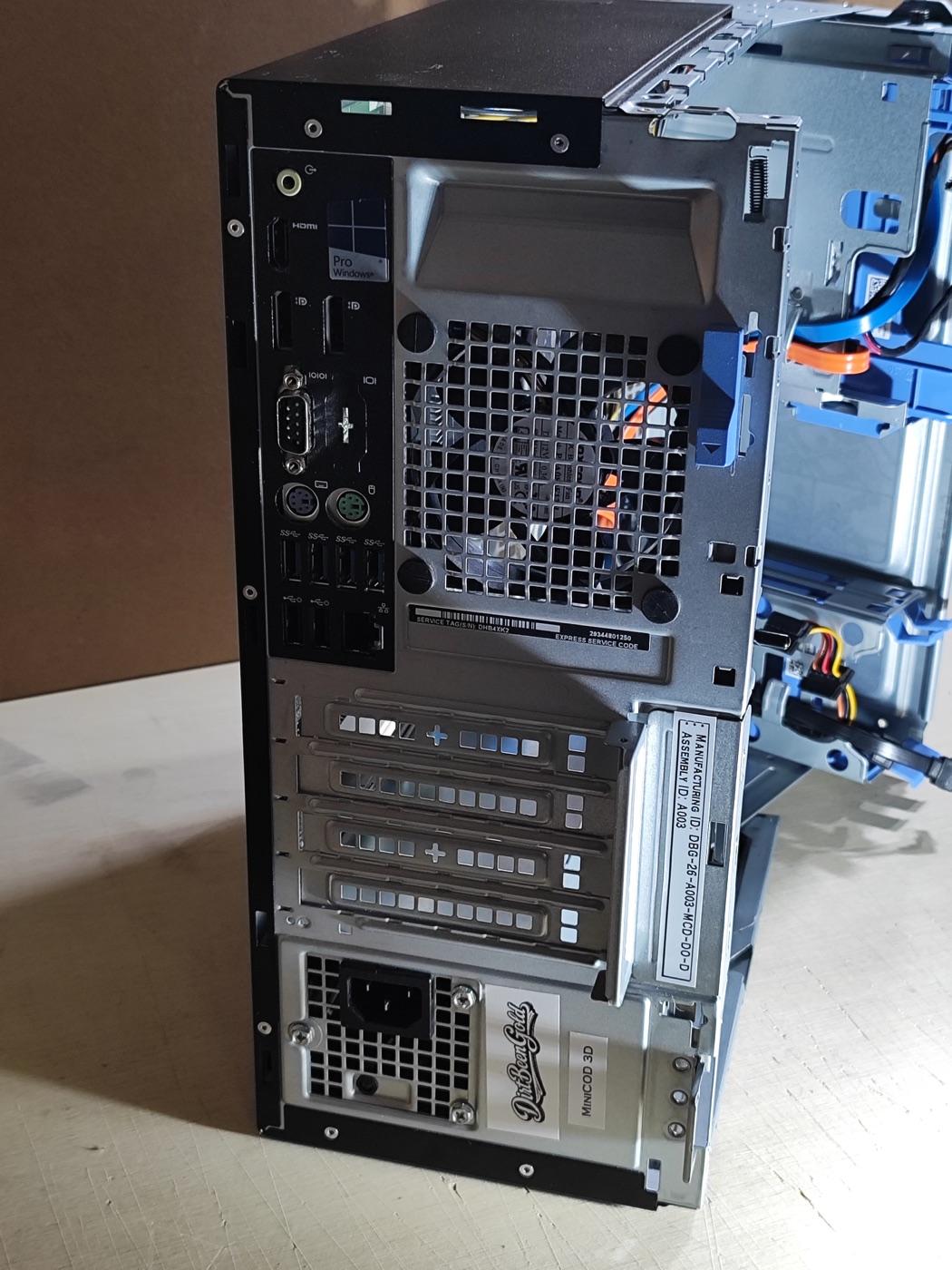

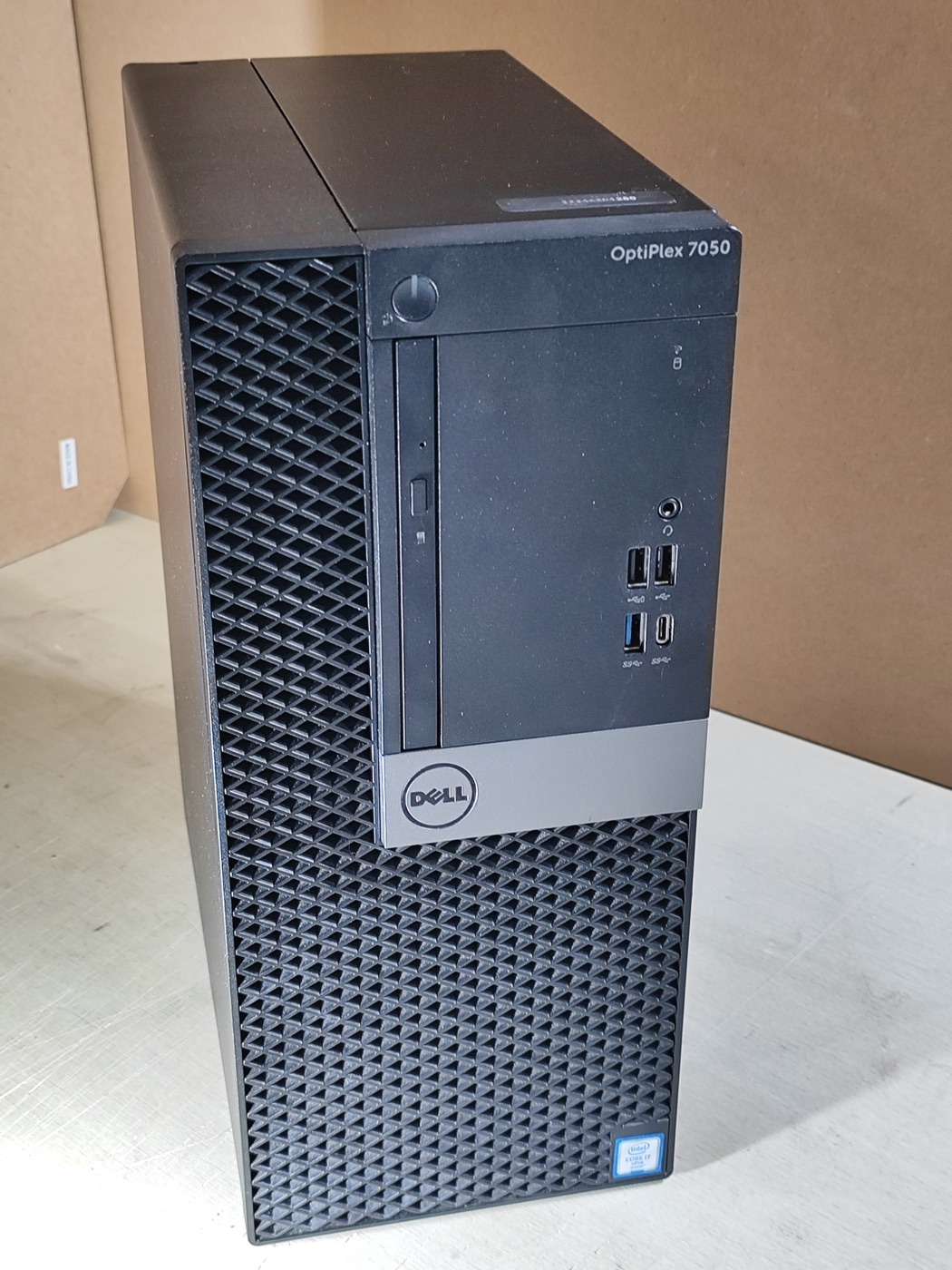

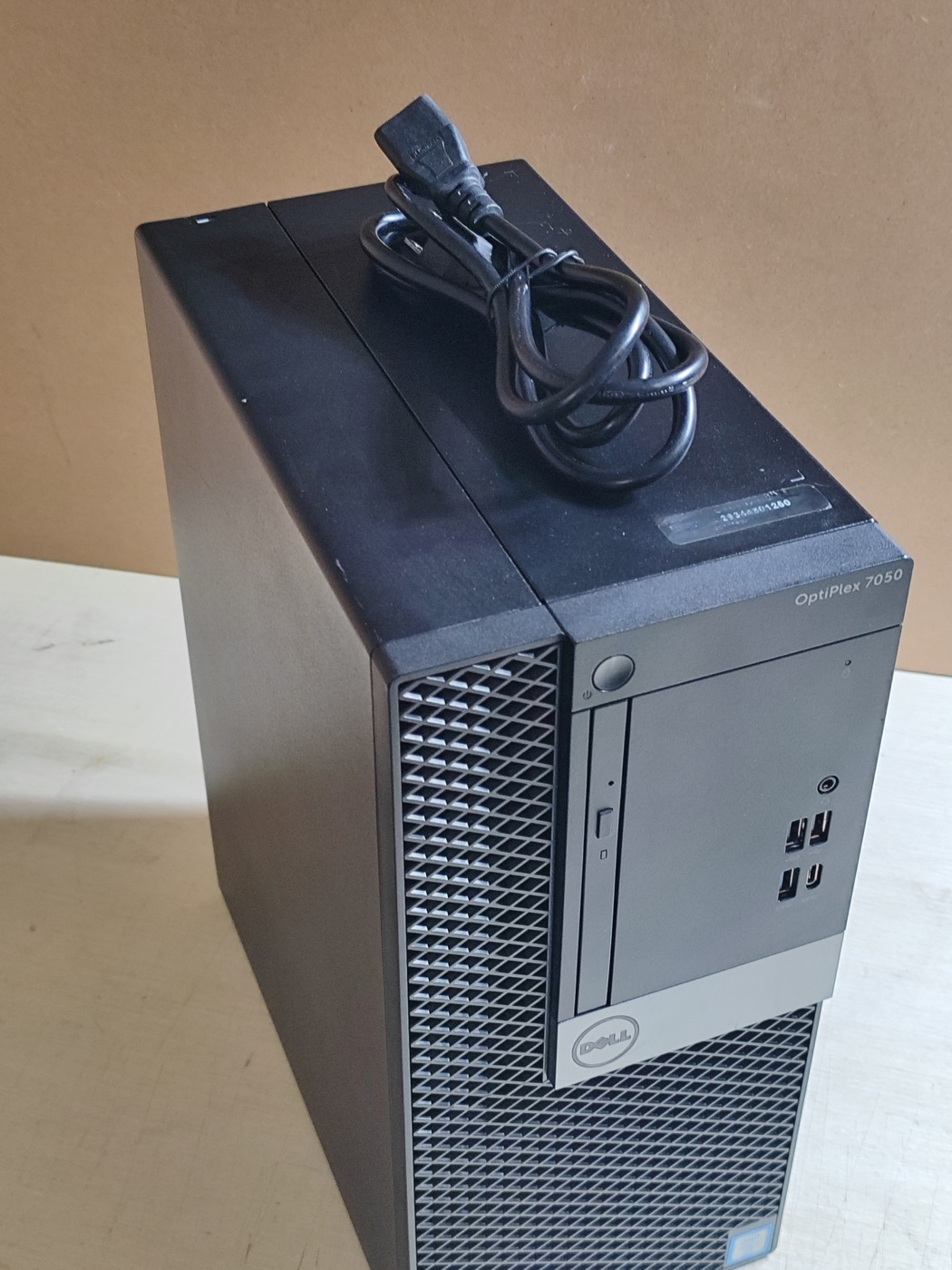

• Platform: Dell OptiPlex 7050 Tower. Compact business-class tower platform repurposed as a simple storage server base.
• Processor: Intel Core i7-6700. Reliable quad-core platform suitable for light NAS and LAB workloads.
• Memory: 8GB RAM. Base memory configuration for entry-level deployment.
• System Drive: Samsung PM981a 256GB NVMe SSD. Dedicated system drive for operating system installation.
• Optical Drive: DVD drive installed and connected. Occupies one onboard SATA port.
• Data Drive Support: Up to 3 buyer-installed SATA drives, planned as 1 x 3.5" SATA drive and 2 x 2.5" SATA drives.
• Storage Connectivity: Motherboard onboard SATA only. No HBA, no hardware RAID, no additional storage controller.
• Networking: Standard onboard Ethernet. No dedicated add-in NIC installed.
• Expansion Philosophy: This build intentionally avoids extra storage and network cards in order to keep the system simple, quiet, economical, and easy to service.
